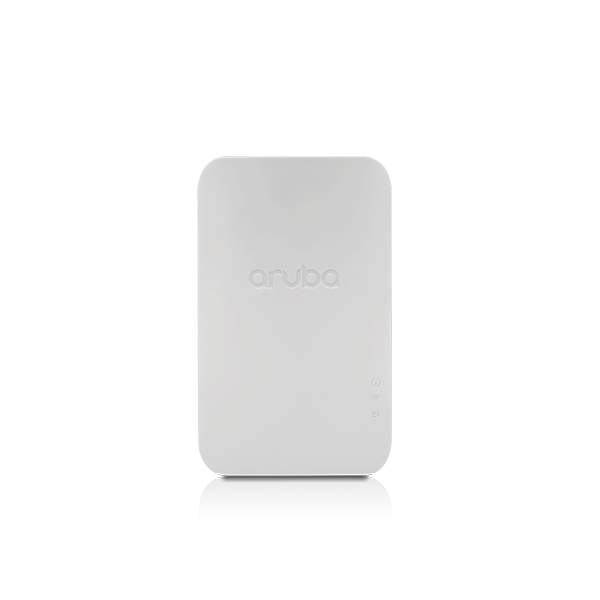

Aruba 203H Access Point
Aruba 203H Access Point
Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
Auto-sensing link speed and MDI/MDX
Local: 10/100/1000BASE-T Ethernet (RJ-45, bottom)
Auto-sensing link speed and MDI/MDX
Passive pass-through interface (two RJ-45, back and bottom)
USB host interface (Type A connector)
Visual indicators (LEDs)
Power/system status
Reset/LED control button (“paperclip access”)
Factory reset (when activated during device power up)
Aruba 203H Access Point
Overview
This compact access point ensures the most cost-effective Wi-Fi connectivity for indoor premises including hotel rooms, dormitories, small offices and remote workstations. It’s software configurable to operate in either 1×1 dual radio mode, or 2×2 single radio mode.
Powered by PoE, it minimizes power consumption with rich features that further facilitates a highly efficient and reliable wireless network, and combines wireless and wired access in a single compact device.
This AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk mounted AP using an optional mounting kit.
AP-203H SERIES SPECIFICATIONS:
Unified flexible radio 802.11ac 2×2:2SS hospitality and branch AP with internal antennas
Supports wall-box and desk mount deployments
-----------------WI-FI RADIO SPECIFICATIONS------------------------
AP type: Indoor, flexible radio:
5GHz 802.11ac 2×2 MIMO OR 2.4GHz 802.11n 2×2 MIMO1, or
5GHz 802.11ac 1×1 AND 2.4GHz 802.11n 1×11
Software-configurable radio supports 5GHz (Radio 0) and/or 2.4GHz (Radio 1)
5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2×2 VHT80 client devices
2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2×2 VHT40 client devices (300Mbps for HT40 802.11n client devices)
Support for up to 32 associated client devices per radio, and up to 8 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
2.400 to 2.4835GHz
5.150 to 5.250GHz
5.250 to 5.350GHz
5.470 to 5.725GHz
5.725 to 5.850GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
802.11b: BPSK, QPSK, CCK
802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2×2 mode)
5GHz band: +16 dBm per chain, +19 dBm aggregate (2×2 mode)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20MHz, 40MHz and 80MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range (2×2 mode)
Supported data rates (Mbps):
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80
802.11n/ac packet aggregation: A-MPDU, A-MSDU
-----------------------WI-FI ANTENNAS----------------------------
Two integrated dual-band moderately directional antennas for 2×2 MIMO with maximum individual antenna gain of 4.9dBi in 2.4GHz and 6.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP. The horizontal beamwidth is roughly 120 degrees.
Combining the patterns of each of the antennas of the MIMO radios (in 2×2 mode), the peak gain of the effective per-antenna pattern is 2.3dBi in 2.4GHz and 3.4dBi in 5GHz.
Technical Specifications
| Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back) | Auto-sensing link speed and MDI/MDX |
| Local: 10/100/1000BASE-T Ethernet (RJ-45, bottom) | Auto-sensing link speed and MDI/MDX |
| Passive pass-through interface (two RJ-45, back and bottom) | USB host interface (Type A connector) |
| Visual indicators (LEDs) | Power/system status |
| Reset/LED control button (“paperclip access”) | Factory reset (when activated during device power up) |
| Serial console interface (custom, uUSB physical jack) |
