CP-UNR-4K4322-V3
CP-UNR-4K2162-V3
Overview
The CP-UNR-4K2162-V3 is a CP-UNR-4K2162-V3 from CP Plus, designed for professional IP surveillance in residential, commercial, and industrial environments. Built around a high-sensitivity CMOS sensor, it captures 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, 960p, D1, CIF, QCIF video at up to 30fps with H.265, H.264+, H.264, MJPEG encoding for bandwidth-efficient storage and streaming. The camera combines reliable performance with easy integration into CP Plus NVR systems and third-party ONVIF-compatible platforms.
Key Features
The CP-UNR-4K2162-V3 offers key features capabilities including: Network Camera Sub Categories 2 MP 4 MP 6 MP 8 MP Project Models Project Models Network Video Recorder (NVR) Sub Categories 4 Ch. 8 Ch. 16 Ch. 32 Ch. 64 Ch. 128 Ch. Analog HD Camera Sub Categories 2.4 MP 5 MP.
Technical Capabilities
The CP-UNR-4K2162-V3 offers technical capabilities capabilities including: Network Camera Sub Categories 2 MP 4 MP 6 MP 8 MP Project Models Project Models Network Video Recorder (NVR) Sub Categories 4 Ch. 8 Ch. 16 Ch. 32 Ch. 64 Ch. 128 Ch. Analog HD Camera Sub Categories 2.4 MP 5 MP.
Connectivity And Integration
The CP-UNR-4K2162-V3 connects via ≤ 10 W (without HDD) over a standard RJ-45 interface, supporting HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, InstaOn, Auto Registration, ONVIF 23.12(Profile T, Profile S, Profile G), CGI, SDK for broad compatibility with NVR, VMS, and cloud platforms. ONVIF Profile S, G, and T compliance ensures interoperability with third-party recording and management systems without proprietary lock-in. Secure HTTPS and TLS-encrypted RTSP streams protect video data in transit across shared network infrastructure.
Security
The CP-UNR-4K2162-V3 implements AES 256-bit encryption along with HTTPS, IP/MAC address filtering, account lockout policies, and syslog support for audit trails. Trusted boot and firmware integrity checks prevent unauthorised firmware from running on the device. The camera is certified to CE, FCC, RoHS, BIS, confirming compliance with international safety and electromagnetic compatibility standards.
Use Cases
The CP-UNR-4K2162-V3 is suited for a wide range of security and surveillance applications in commercial, residential, and industrial environments requiring reliable, high-quality video monitoring.
Technical Specifications
| Video Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, 960p, D1, CIF, QCIF |
| Video Compression | H.265, H.264+, H.264, MJPEG |
| Audio Input | 1 channel RCA |
| Audio Output | 1 channel RCA |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Ethernet | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, InstaOn, Auto Registration, ONVIF 23.12(Profile T, Profile S, Profile G), CGI, SDK |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Power Consumption | ≤ 10 W (without HDD) |
| Operating Temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Dimensions | 375.0 mm × 282.9 mm × 53.0 mm |
| Weight | 1490 g (without HDD) |
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16 channel |
| User Interface | Web, Local GUI |
| AI by Recorder | SMD |
| AI by Camera | Perimeter protection, SMD |
| Perimeter Performance of AI by Camera | All channels (4 targets/s) |
| Video Output | 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Encode Strategy | Instastream |
| Decoding Capability | AI disabled: 1 channel 12 MP@30 fps, 1 channel 8 MP@30 fps, 2 channel 6 MP@30 fps, 2 channel 5 MP@30 fps, 3 channel 4 MP@30 fps, 6 channel 1080p@30 fps AI enabled: 1 channel 8 MP@30 fps, 1 channel 6 MP@30 fps, 1 channel 5 MP@30 fps, 2 channel 4 MP@30 fps, 4 channel 1080p@30 fps |
| Video Display Split | 1/4/8/9/16 |
| SMD Plus by NVR | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (8 targets/s) |
| Network Bandwidth | AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing |
| Abnormality Alarm | Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline |
| Intelligent Alarm | Perimeter protection; SMD+ |
| General Alarm | Motion detection, Camera external alarm, PIR alarm |
| Alarm Linkage | Recording, Snapshot, Buzzer, Log, Preset, Email, Tour |
| Hard Disk | 2 SATA ports. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, Motion detection, Intelligent, Alarm |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback |
| Interface Ports | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| Backup Method | USB device and network |
| Smart Phone | iOS, Android |
| Browser | Chrome, IE, Safari, Edge, Firefox |
| Power Supply | 12 VDC, 4 A |
| Operating Humidity | 10%–93% (RH), non-condensing |
Customer Reviews
4.2 / 5
Based on 9 customer reviews
For verified reviews and customer feedback, please contact our sales team.
Related Products
CP Plus
CP Plus

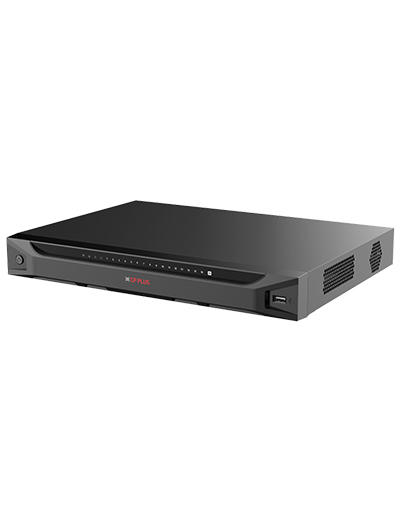

CP-UNR-4K4082-P8V4
CP Plus
CP Plus
CP-UNR-4K4164-FI
CP Plus
CP Plus

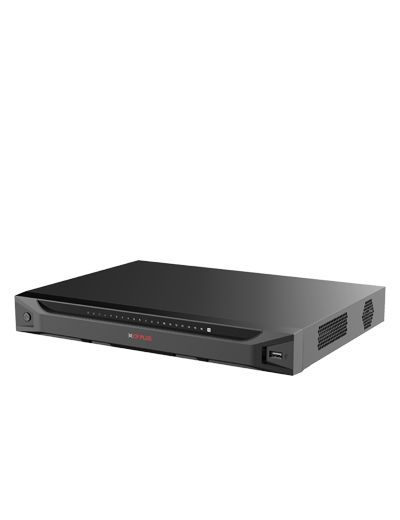

CP-UNR-4K4082-V4
